Ultimate Protection for Extreme Environments

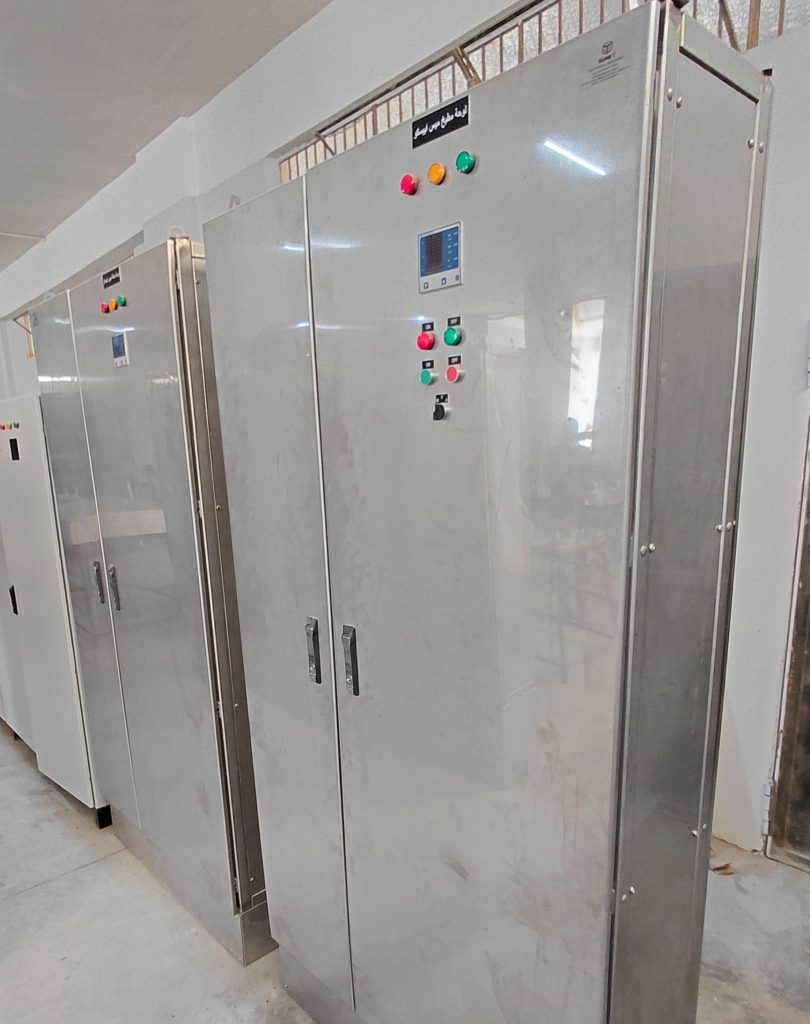

Our Stainless Steel Panels are engineered for environments where standard carbon steel simply cannot survive. Whether facing the corrosive salt air of coastal regions, the rigorous chemical washdowns of food processing plants, or the sterile requirements of pharmaceutical labs, these enclosures provide an impenetrable barrier against rust and contamination.

• General Description: A premium range of enclosures manufactured from high-grade stainless steel. These panels combine exceptional structural strength with a non-porous surface that resists the growth of bacteria and the corrosive effects of acids, alkalis, and moisture.

• Key Technical Specs:

  • Material Grades: * AISI 304: The industry standard for excellent corrosion resistance in indoor and mild outdoor environments.

    • AISI 316 / 316L: Enhanced with Molybdenum for superior resistance to chlorides and marine environments.

  • Protection Rating: Standard IP66 or IP69K (designed to withstand high-pressure, high-temperature washdowns).

  • Finish: Available in a Brushed (Satin) finish for a modern look or a Mirror-Polished finish to prevent particulate buildup in cleanrooms.

  • Impact Resistance: Rated IK10, providing the highest level of protection against mechanical damage.

• Design & Hygiene Features:

  • Sloped Roof Design: Optional integrated sloped tops to prevent the accumulation of water, dust, or cleaning fluids—essential for food and beverage safety.

  • Concealed Hinges: Internal heavy-duty hinges that prevent dirt traps and ensure a smooth, easy-to-clean exterior.

  • Blue Silicone Gaskets: High-visibility, FDA-compliant gaskets available for food-grade applications to ensure no contaminants can enter the enclosure.

• Applications:

  • Food & Beverage: Processing lines requiring daily chemical sanitization.

  • Water Treatment: Desalination plants and wastewater facilities where humidity and chemicals are constant.

  • Oil & Gas / Marine: Offshore platforms and coastal infrastructure exposed to salt spray.

  • Pharmaceuticals: Sterile laboratories requiring non-reactive surfaces.

Why Choose Square EIC Stainless Steel Solutions?

1. Lifetime Durability: While the initial investment is higher, the “zero-maintenance” nature of stainless steel offers the lowest Total Cost of Ownership (TCO) over the project’s life.

2. Precision Machining: We utilize advanced laser cutting and TIG welding techniques to ensure seamless edges and water-tight joints.

3. Customization: From specialized cable glands to internal mounting plates, we customize every stainless enclosure to meet the exact technical requirements of your harshest operating environments.
