Precision Control for Smart Illumination

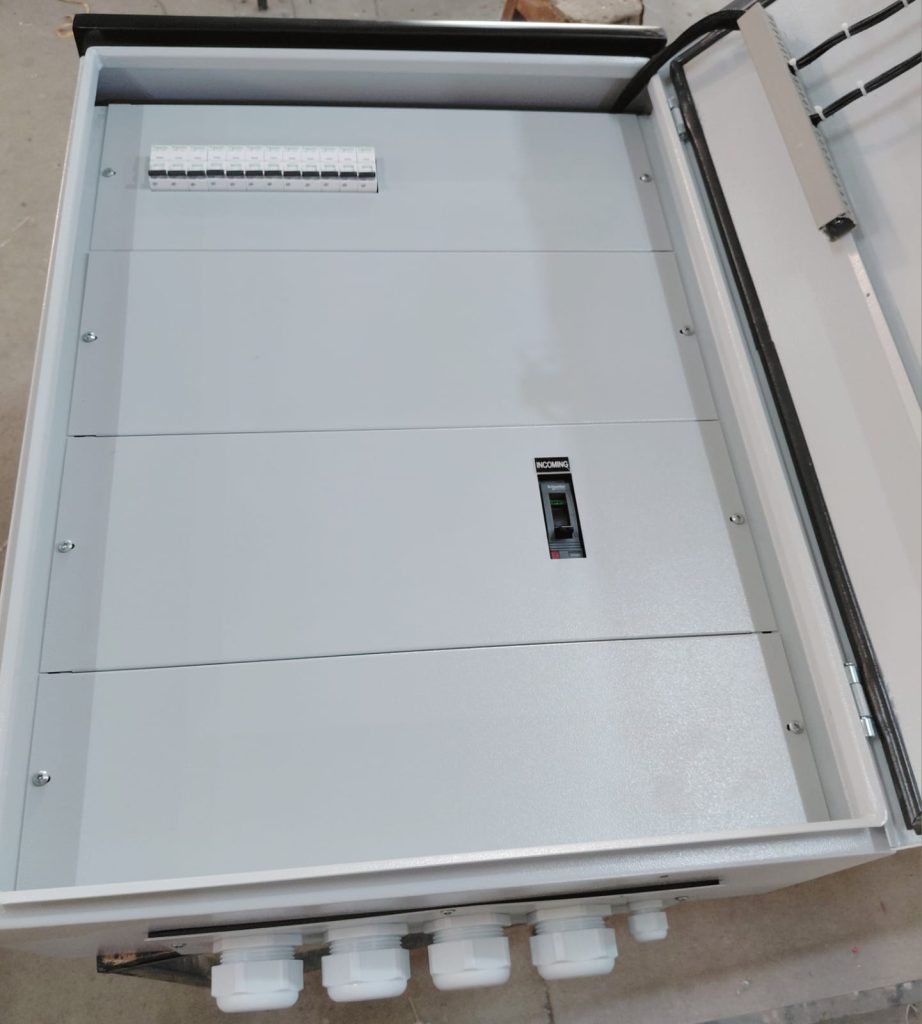

Our Lighting Control Panels are engineered to provide centralized management of lighting circuits for commercial, industrial, and infrastructure projects. By integrating high-quality switching components with intelligent control logic, these panels enhance energy efficiency, extend lamp life, and provide simplified operational control for large-scale facilities.

• General Description: A specialized distribution board designed to control internal and external lighting systems. These panels can operate as standalone units or as part of a wider Building Management System (BMS), utilizing timers, photocells, and motion sensors to automate lighting schedules.

• Key Technical Specs:

  • Configuration: Custom-built to handle any number of circuits, from small office floors to massive industrial warehouses and street lighting networks.

  • Components: Equipped with high-end contactors, miniature circuit breakers (MCBs), and specialized lighting controllers from industry leaders like Schneider Electric.

  • Control Modes: * Manual: Local override switches for maintenance or emergency use.

    • Automatic: Integrated with digital astronomical timers or outdoor photocells for “Dusk-to-Dawn” operation.

    • Smart Integration: Capable of interfacing with KNX, DALI, or 0-10V dimming protocols.

  • Enclosure: Available in Flush or Surface mounted versions with IP42/IP54 protection ratings for indoor use, and IP65 for outdoor lighting applications.

• Design & Safety Features:

  • Zonal Control: Circuits are organized into logic-based zones, allowing for independent control of different areas (e.g., parking lots, office corridors, and emergency exits).

  • Phase Distribution: Balanced load distribution across phases to ensure system stability and prevent neutral overloading.

  • Safety Interlocks: Built-in protection against overcurrent and short circuits, ensuring the safety of the entire lighting infrastructure.

• Why Choose Square EIC Lighting Panels?

  • Energy Savings: Our automated solutions significantly reduce electricity consumption by ensuring lights are only active when needed.

  • Durability: Built to handle the high inrush currents typical of modern LED drivers and high-intensity discharge (HID) lamps.

  • Maintenance-Friendly: Clear labeling, color-coded wiring, and intuitive internal layouts make troubleshooting and circuit identification effortless.
