The Foundation of Industrial Power Control

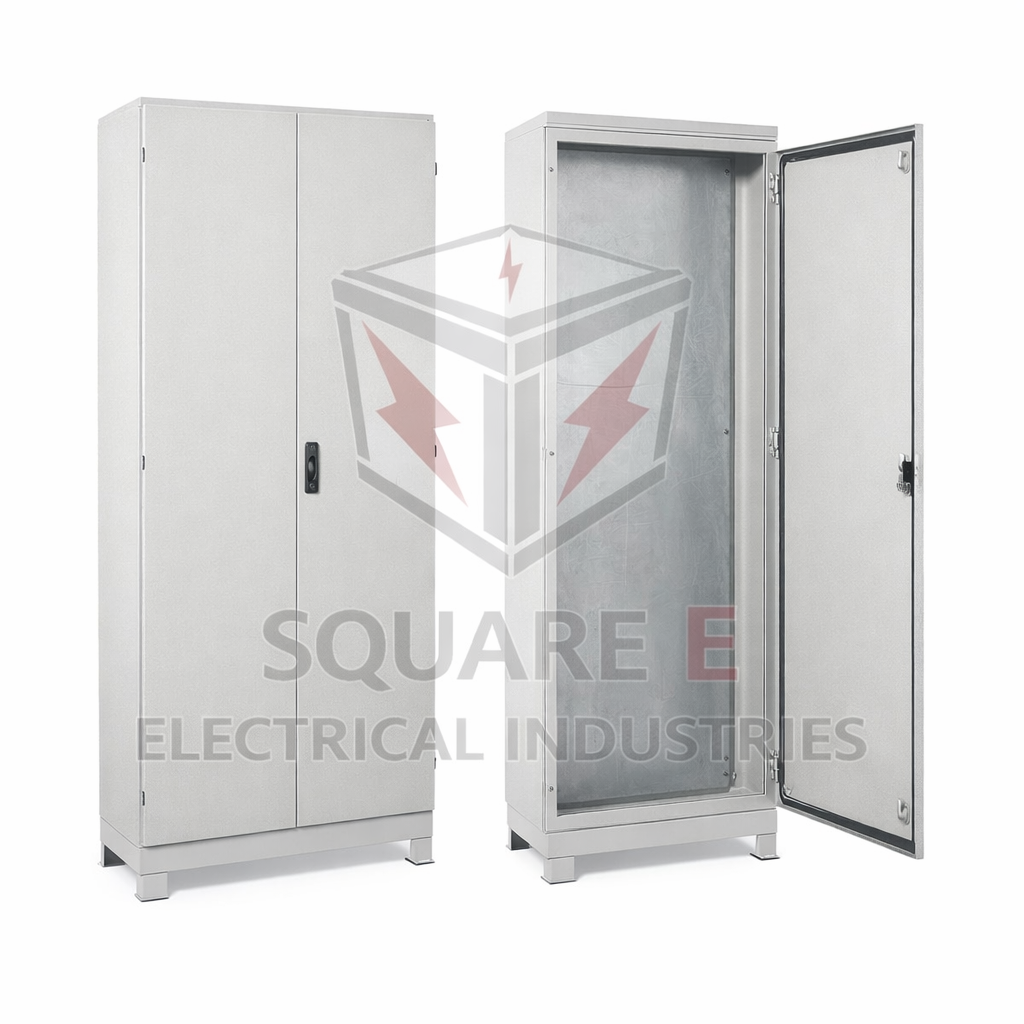

Our Floor Mounted Enclosures are engineered to provide maximum internal volume and structural strength for the most demanding electrical installations. Whether housing large power distribution systems, motor control centers (MCCs), or complex automation arrays, these enclosures offer the ultimate protection for your critical assets.

• General Description: A heavy-duty, freestanding enclosure system designed for high-density equipment mounting. These units are built to withstand significant mechanical loads and provide a stable environment for sensitive electronics and power components in both industrial and infrastructure projects.

• Key Technical Specs:

  • Structure: High-rigidity Cold-Rolled Steel (CRS) or Galvanized Steel frames with reinforced base sections for secure floor anchoring.

  • Protection Rating: Standard IP54/IP55 for dust and water protection, with specialized IP65/IP66 options for harsh environments.

  • Impact Resistance: Rated up to IK10, ensuring the highest level of protection against external mechanical impacts.

  • Standard Dimensions: Height options from 1600mm to 2200mm, with modular widths and depths to accommodate any equipment layout.

  • Finish: High-quality electrostatic polyester powder coating (Standard RAL 7035 Grey), providing excellent resistance to chemicals, UV, and corrosion.

• Design & Flexibility:

  • Modular Architecture: Allows for the joining of multiple bays (side-by-side or back-to-back) to create large-scale control suites.

  • Mounting Options: Equipped with adjustable depth-mounting plates, swing frames, and 19-inch racks for hybrid power and IT applications.

  • Accessibility: Features 120° or 180° door opening angles with 4-point locking systems for enhanced security and easy maintenance access.

  • Thermal Management: Prepared for integrated cooling fans, heat exchangers, or air conditioning units to ensure optimal operating temperatures.

• Why Choose Square EIC Enclosures?

  • High Load Capacity: Engineered to support heavy transformers, busbar systems, and large switchgear without structural deformation.

  • Custom Cable Entry: Features removable bottom gland plates for flexible and organized cable management from below.

  • Safety First: Includes dedicated earthing points on the body and doors to ensure complete electrical continuity and personnel safety.
